FEATURES

• ReadsSMPTE(includingEBU,

film&non‐dropframe)andIRIG‐B

• OutputsparallelBCDtimewith

8digitoronemillisecondresolution

─hh:mm:ss:ms(frames)

• 120/240VACwithsuppliedexternal

wallmountedpowersupplyor

12‐28VDCoperation.

• Powersupplies

availableformostcountries

throughouttheworld



SPECIFICATIONS

I/OConnections

• Inputpower:12VDCconvertedfromwallmount

ACunit115/230,50/60Hz

• 2.1mmmalepowerconnector

• TimeCodeinput:BNCsocket

• BCDoutput:DB‐37



OperatingParameters

• Temperature:0to+70°C

• Humidity:Upto90%,non‐condensing





Physical

Size:

4.13wx1.5hx5.5dinches

Weight:

16oz

10.48wx3.81hx14dcm 435g



Case

• Cover:Off‐whitealuminum

• Front/rearpanel:Clearanodizedaluminum

• Optionalrackmountkitavailable─RM4



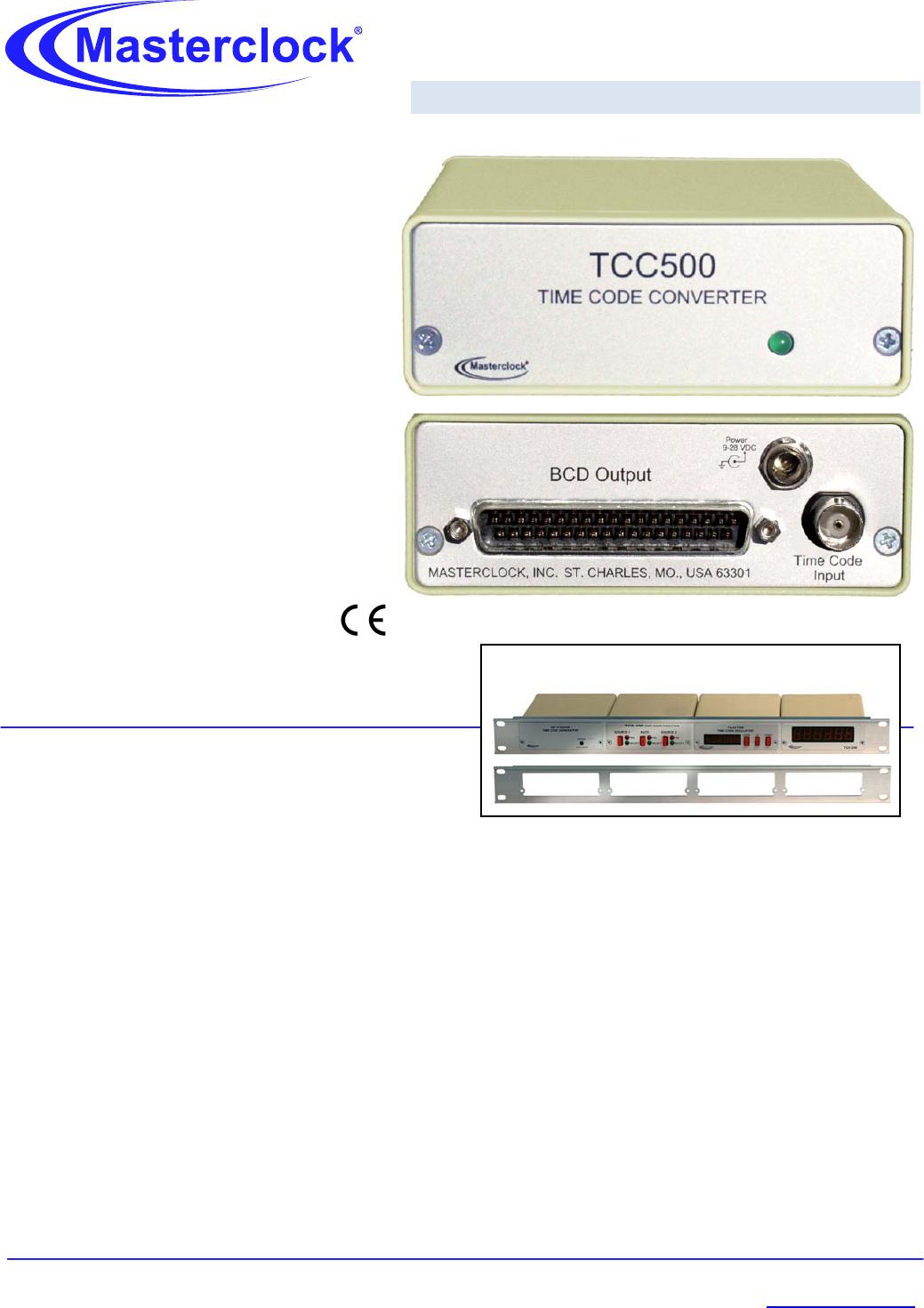

Time Code Interfac
